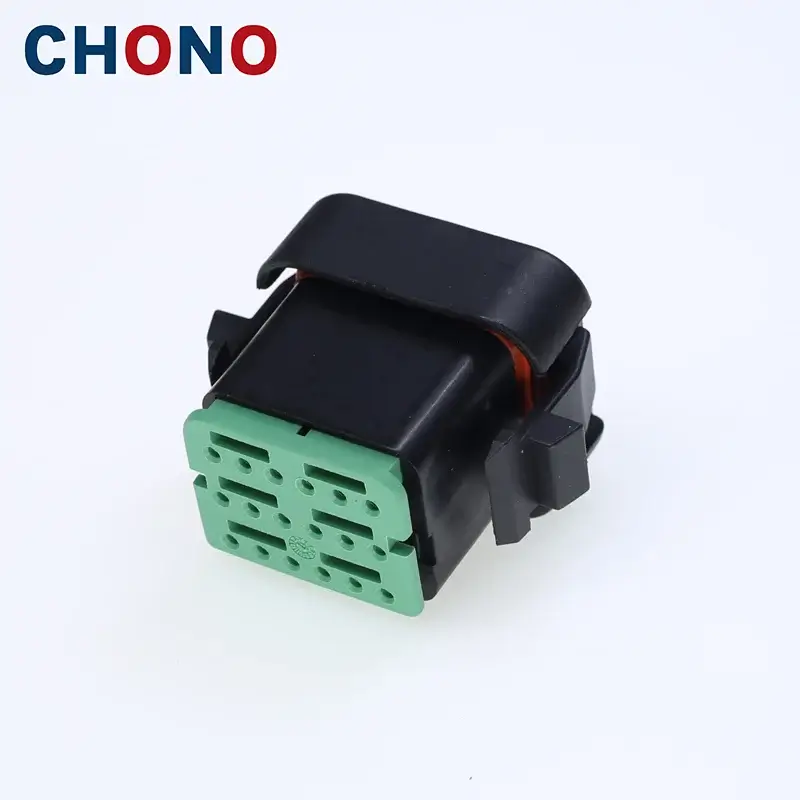

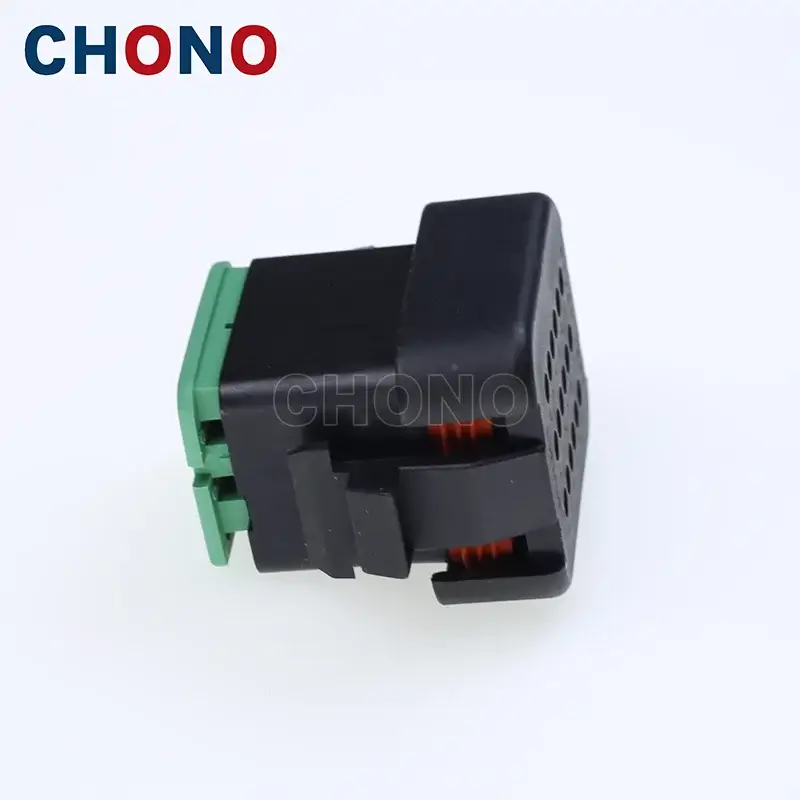

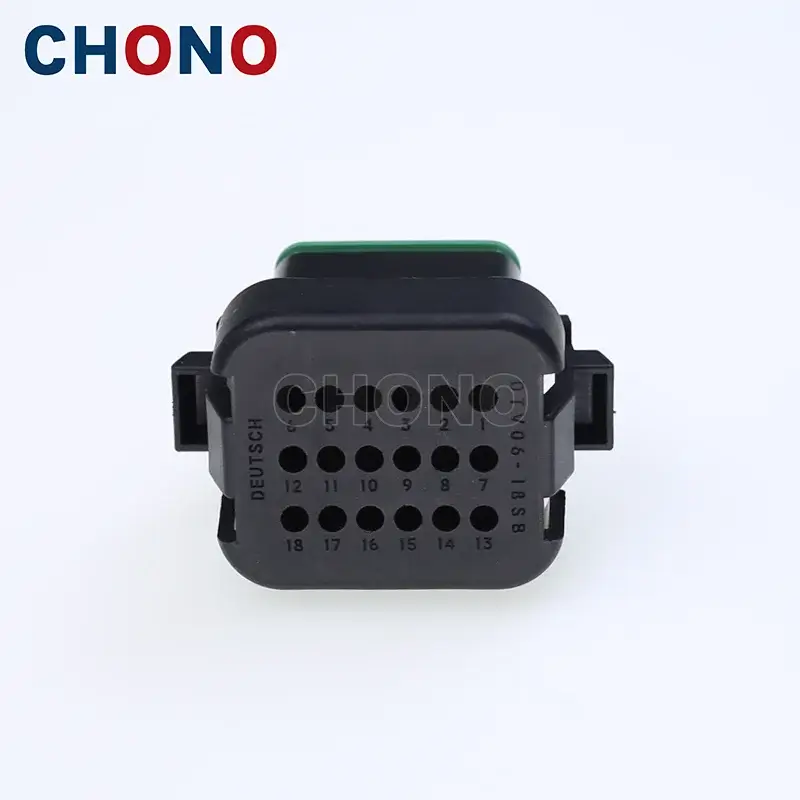

DTV06-18SB 18 Pin Deutsch Carter Excavator Engine Injector Connector Plug

DTV06-18SB

SKU DTV06-18SB Categories 10-50 Way, Deutsch Connector, DTV

Information
Drawing

Information

SKU	DTV06-18SB
Required Wedgelock:	WV-18S Included
Required Seals:	Silicone Rubber, Included
Series:	DTV Series
Material:	Thermoplastic
Color:	Black
Shape:	Rectangular
Cavities:	18
Wire Gauge:	14-20 AWG (2.50-0.50 mm²)
Contact Size:	16
Current Rating:	13A
Matching Connector	DTV02-18PB

Drawing
