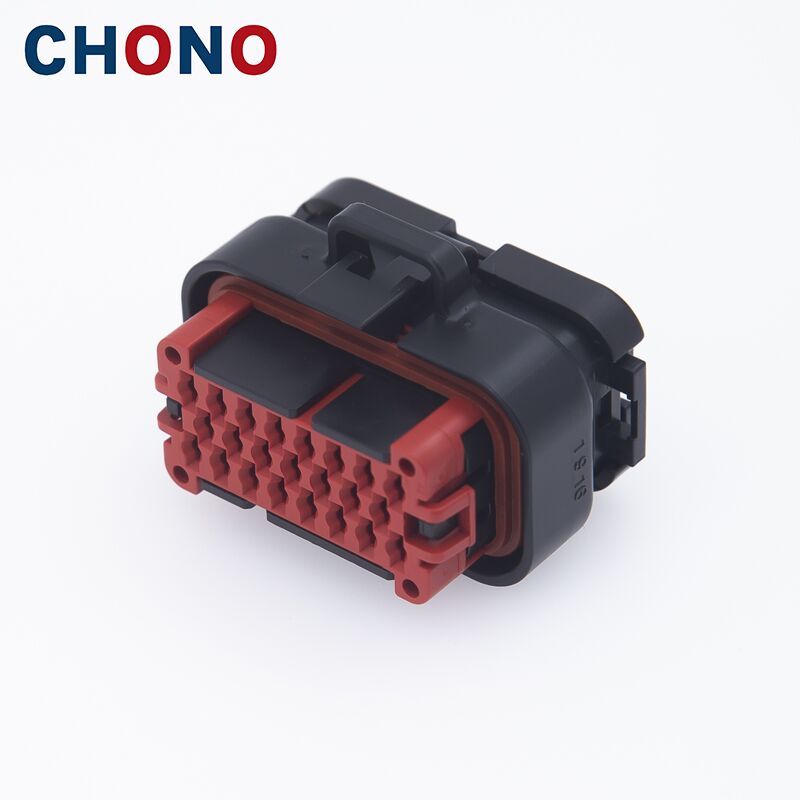

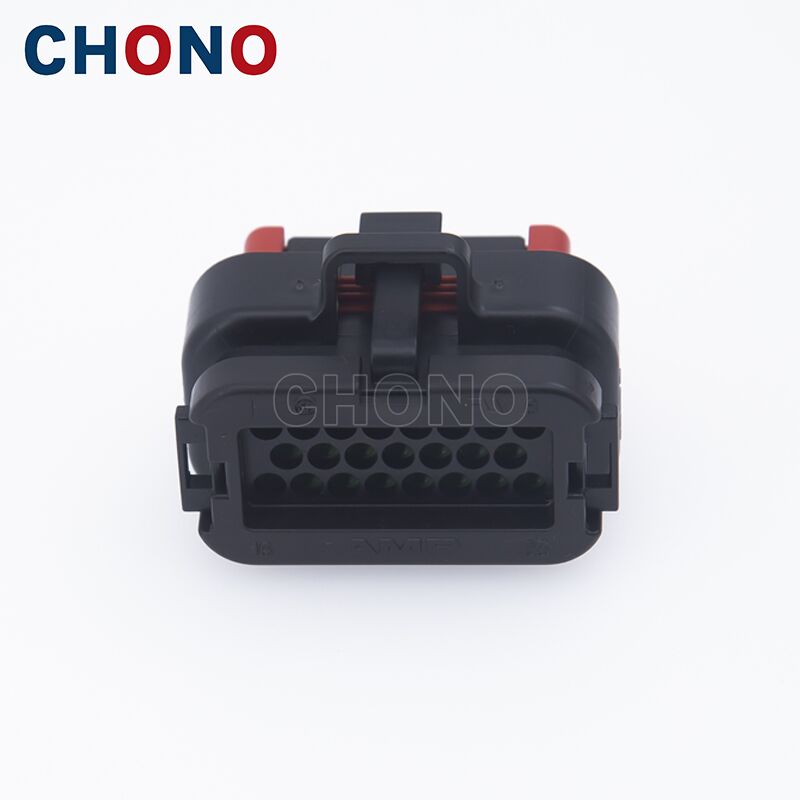

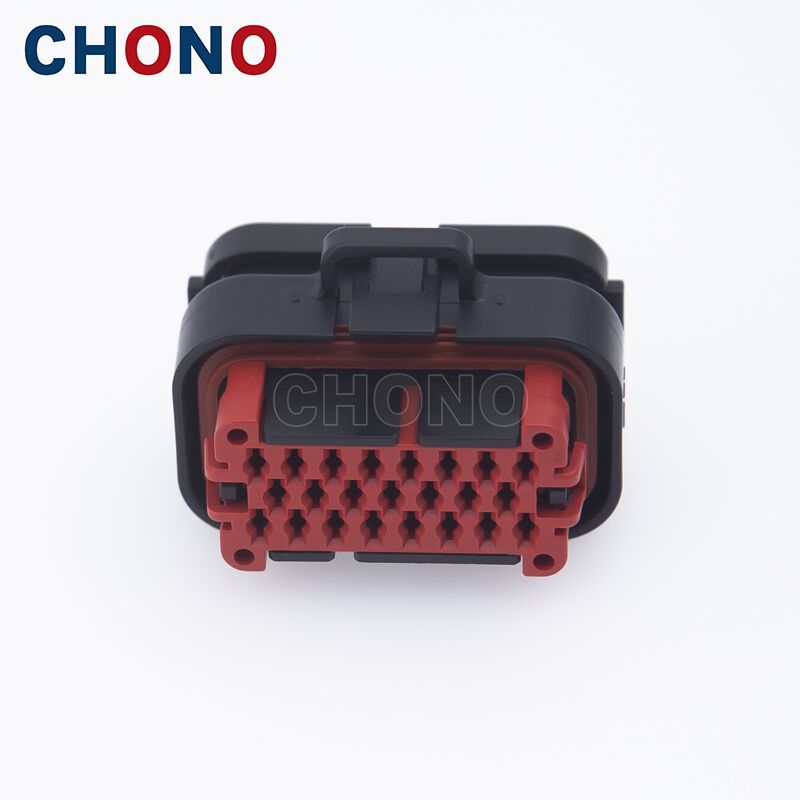

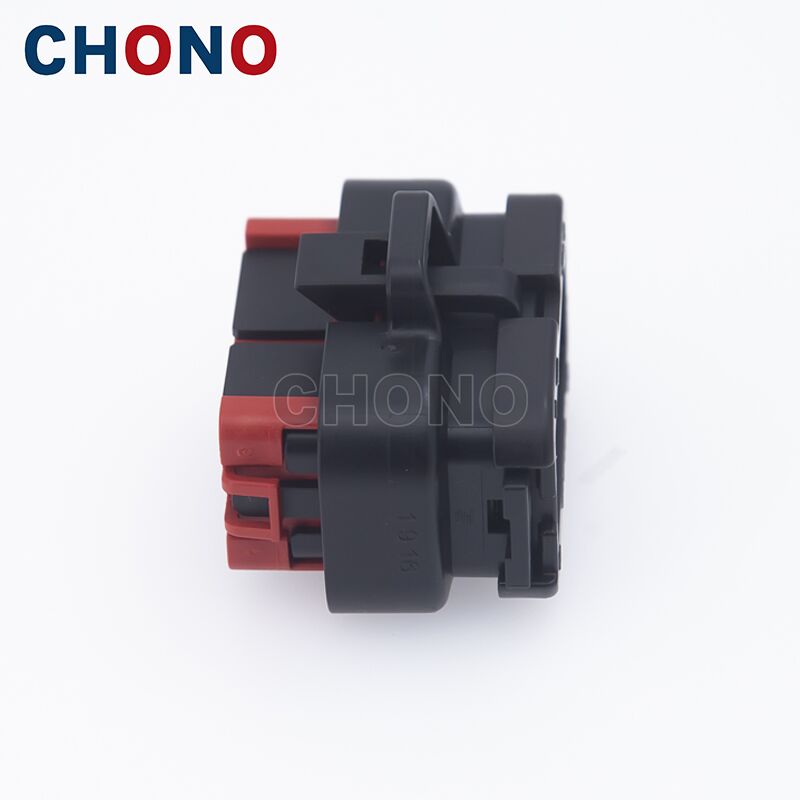

TE 770680-1 23 Way Female AMPseal Sealed Car Connector

CH7233A-1.5-21

SKU CH7233A-1.5-21 Categories 10-50 Way, AMPSEAL Connector, TE-AMP

Information
Drawing

Information

TE 770680-1 23 Way Female AMPseal Sealed Car Connector

SKU	CH7233A-1.5-21
OEM P/N	TE 770680-1
Gender	Female
Delivery Time	Enough stock and strong production capacity ensure timely delivery.
Material	Housing: PBT+G, PA66+GF; Terminal: Copper Alloy, Brass, Phosphor Bronze.
Operating Temperature range	-40℃~120℃
Payment term	30% deposit in advance,70% before shipment, and 100% TT in advance.
Design ability	We can supply samples, OEM&ODM are welcome.

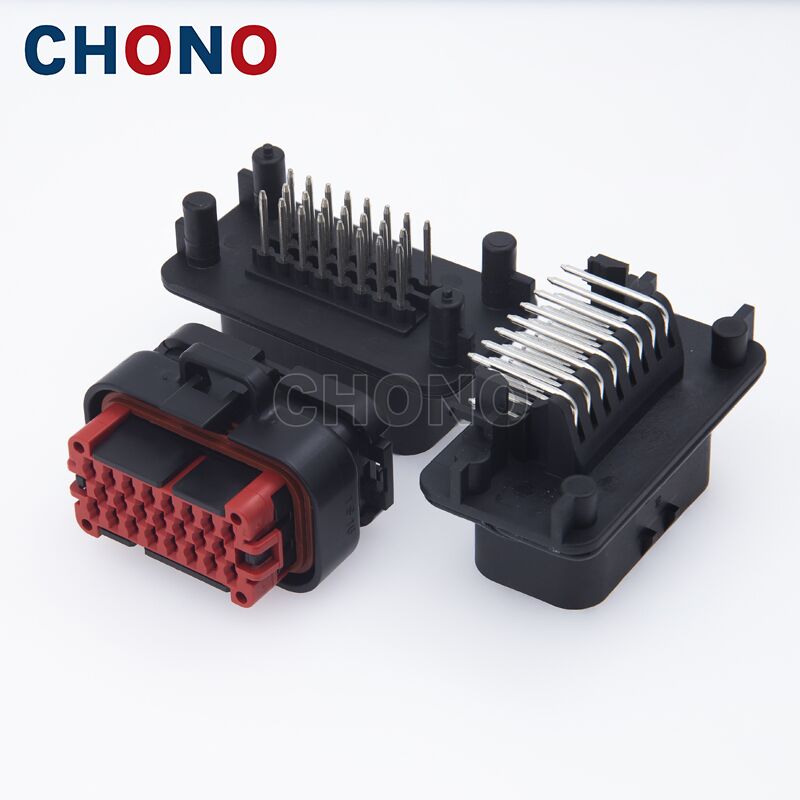

Matching Connector	776087-1 / 776228-1

Drawing

You may also like…

AMPSeal Connector is a high-reliability and high-performance electrical connector widely used in fields such as automotive, aviation, railway, and marine industries. It adopts a sealed design with features such as waterproofing, dustproofing, chemical corrosion resistance, high-temperature resistance, and vibration resistance, ensuring stable and reliable circuit connections. In addition, the AMPSeal Connector also supports multiple wiring methods and configuration options, making it flexible to adapt to different needs and applications.

KEY FEATURES

Accepts contact size 1.3 mm (up to 17 amps gold, up to 8 amps tin)
Operating at temperatures -40°℃ to +125℃ for gold plated,-40℃ to +105℃ for tin plated
16-24 AWG (1.25-0.20 mm2)
8,14,23, and 35 cavity arrangements
PCB mount
Rectangular, thermoplastic housing
Integrated latch for mating
Integrated wedgelock confirms contact alignment and retention
Optional CPA and header seals for added reliability
Tool-less backshell accessories are easy to install for added protection and reduced wire strain

WIDELY USED

Truck, bus, off-highway, construction, agriculture, mining, emergency vehicles, forestry, forklift, recreational, marine, motorcycle, power generation
