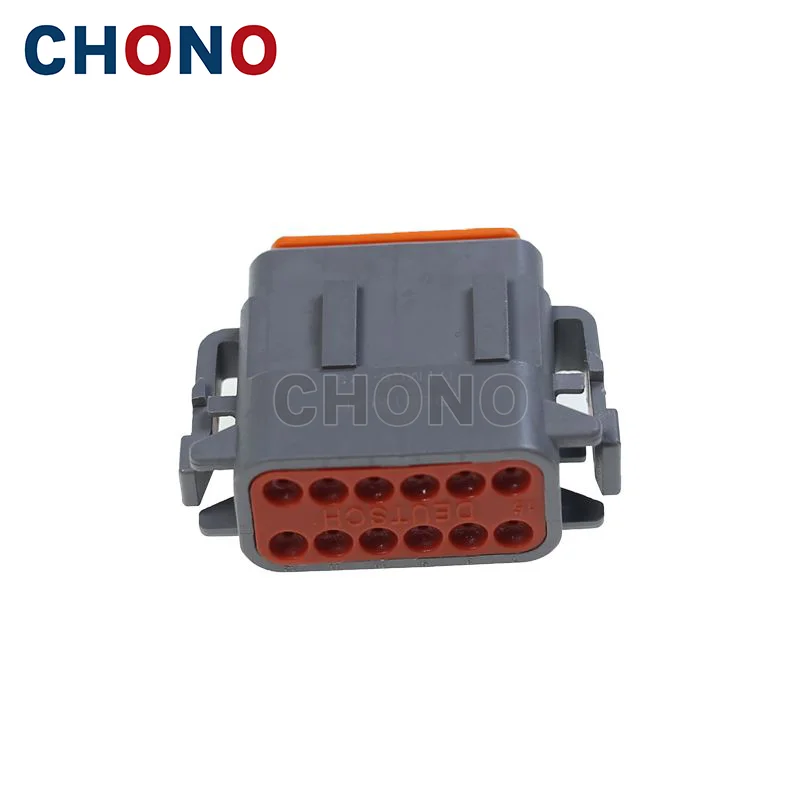

DTM06-12SA
| SKU | DTM06-12SA |

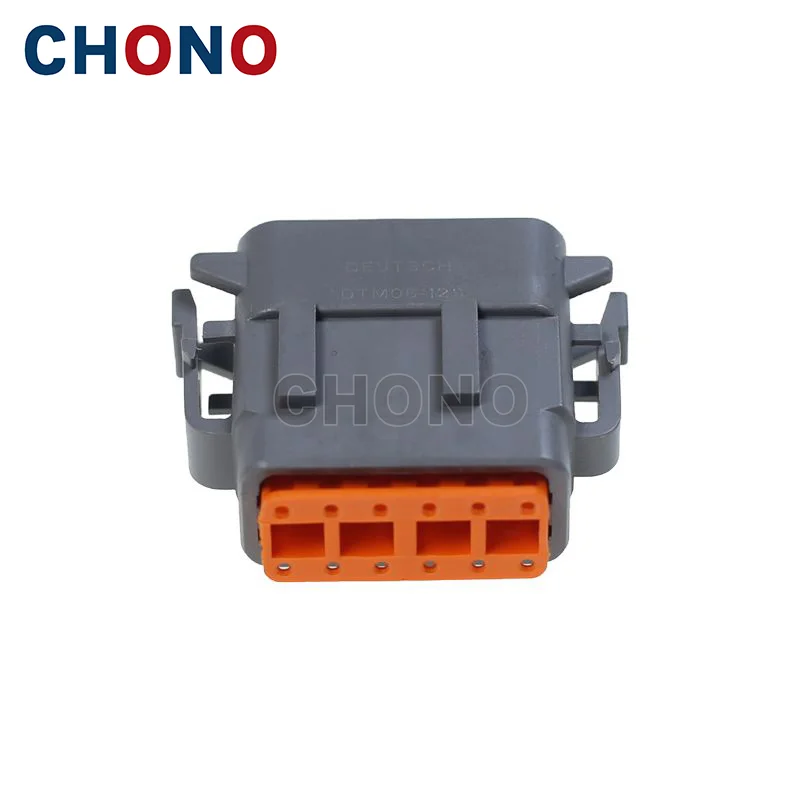

| Required Wedgelock: | WM-12S Included |
| Required Seals: | Silicone Rubber, Included |
| Series: | DTM Series |
| Material: | Thermoplastic |
| Color: | Gray |
| Shape: | Rectangular |
| Cavities: | 2,3,4,6,8,12 |
| Wire Gauge: | 12-20 AWG |
| Contact Size: | 20 |
| Current Rating: | 7.5A |

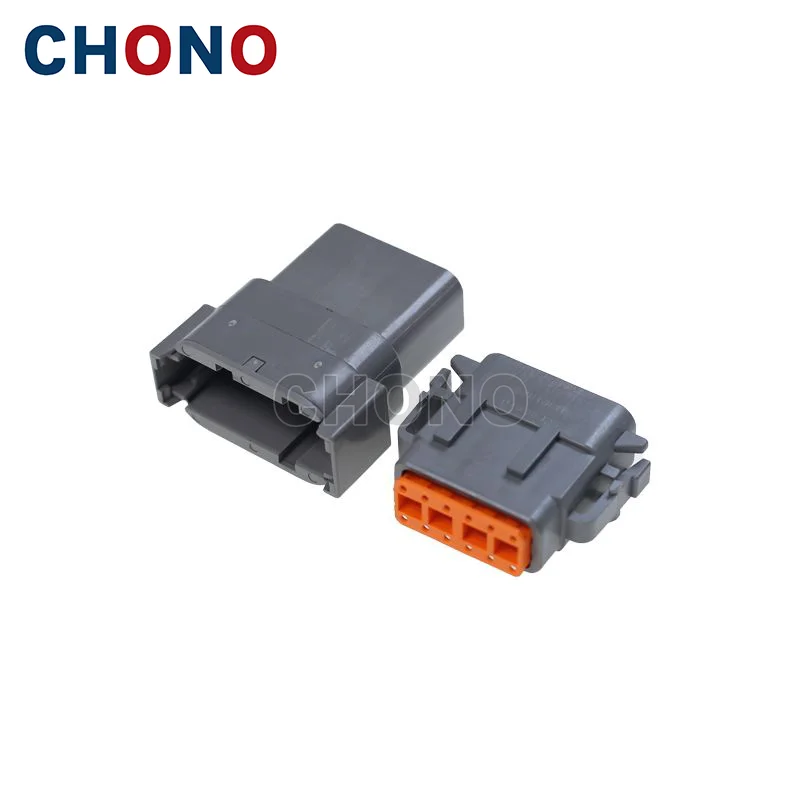

| Matching Connector | DTM04-12PA |
| DT06-2S: | 4 | DT04-2P: | 4 |
| DT06-3S: | 3 | DT04-3P: | 3 |
| DT06-4S: | 5 | DT04-4P: | 5 |
| DT06-6S: | 3 | DT04-6P: | 3 |
| 1062-16-0122: (Female terminal) | 55 | 1060-16-0122: (Male terminal) | 55 |
| DT06-2S: | 5 | DT04-2P: | 5 |
| DT06-3S: | 5 | DT04-3P: | 5 |
| DT06-4S: | 5 | DT04-4P: | 5 |
| DT06-6S: | 5 | DT04-6P: | 5 |
| DT06-8S: | 1 | DT04-8P: | 1 |
| DT06-12S: | 1 | DT04-12P: | 1 |
| 1062-16-0122: (Female terminal) | 85 | 1060-16-0122: (Male terminal) | 85 |
| 114017(Plug Cavity): | 20 |
| DT06-2S: | 7 | DT04-2P: | 7 |
| DT06-3S: | 5 | DT04-3P: | 5 |
| DT06-4S: | 5 | DT04-4P: | 5 |
| DT06-6S: | 5 | DT04-6P: | 5 |
| DT06-8S: | 4 | DT04-8P: | 4 |
| DT06-12S: | 4 | DT04-12P: | 4 |
| 1062-16-0122: (Female terminal) | 160 | 1060-16-0122: (Male terminal) | 160 |
| 114017(Plug Cavity): | 50 |
