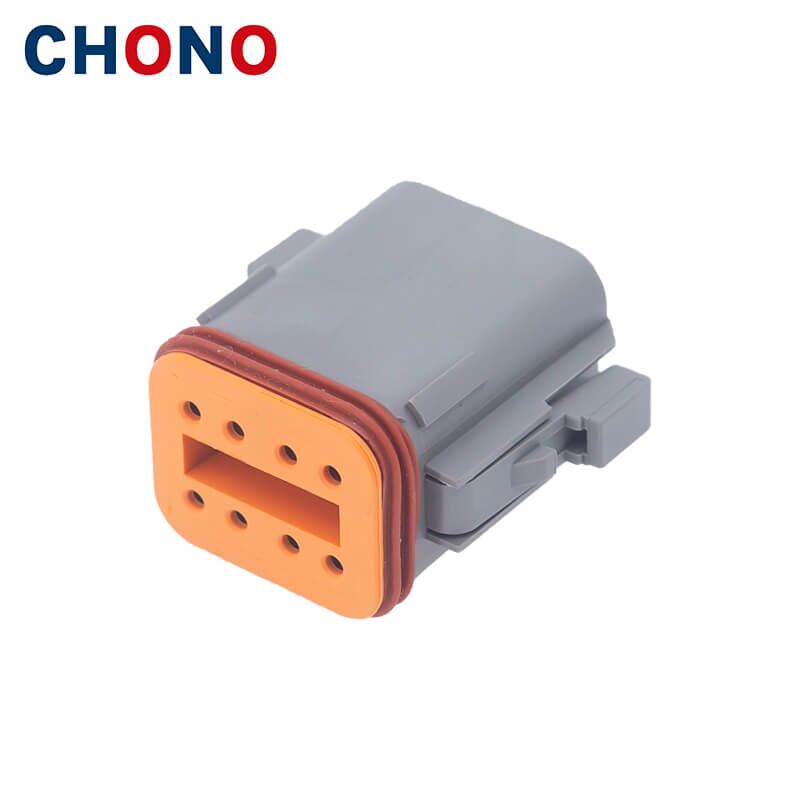

DT06-8S Female 8 Way Deutsch DT Connector

DT06-8S

SKU DT06-8S Categories 8 Way, Deutsch Connector, DT

Information
Drawing

Information

SKU	DT06-8S
Required Wedgelock:	W8S Included
Required Seals:	Silicone Rubber, Included
Series:	DT Series
Material:	Thermoplastic
Color:	Gray
Shape:	Rectangular
Cavities:	2,3,4,6,8,12
Wire Gauge:	12-20 AWG
Contact Size:	16
Current Rating:	13A
Matching Connector	DT04-8P

Drawing

You may also like…

DT04-8P 8 Way DT Male Auto Connector

DT,DTM,and DTP series environmentally sealed connectors aredesigned for cable to cable and cable to board applications.The DT connectors are used in harsh environment applications whereeven a small degradation in connection may be critical.Thermoplastic housings offer a wide operating temperaturerange and silicone rear wire and interface seals allow theconnectors to withstand conditions of extreme temperature andmoisture.
