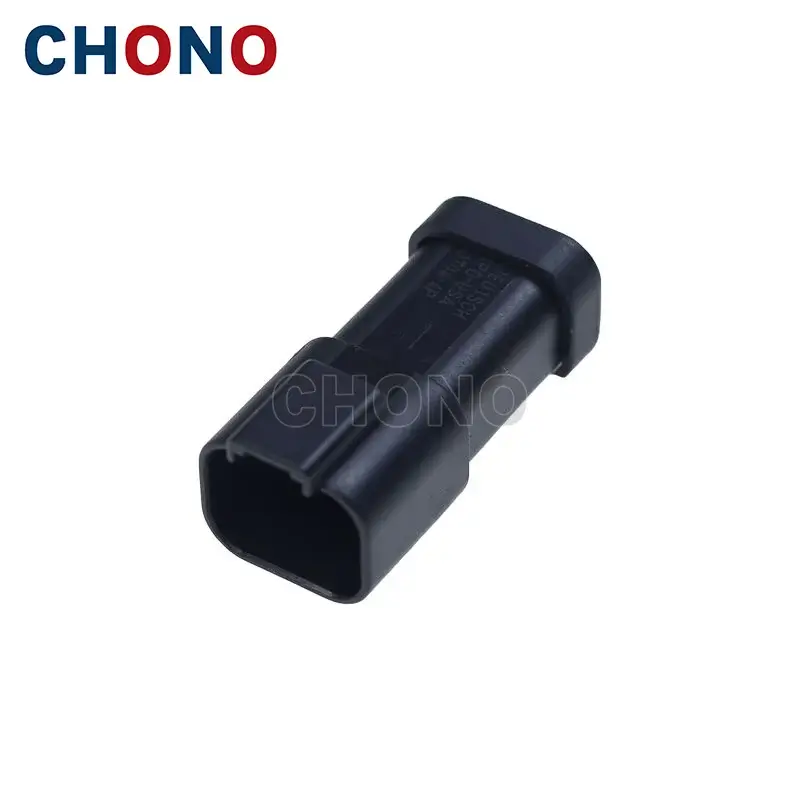

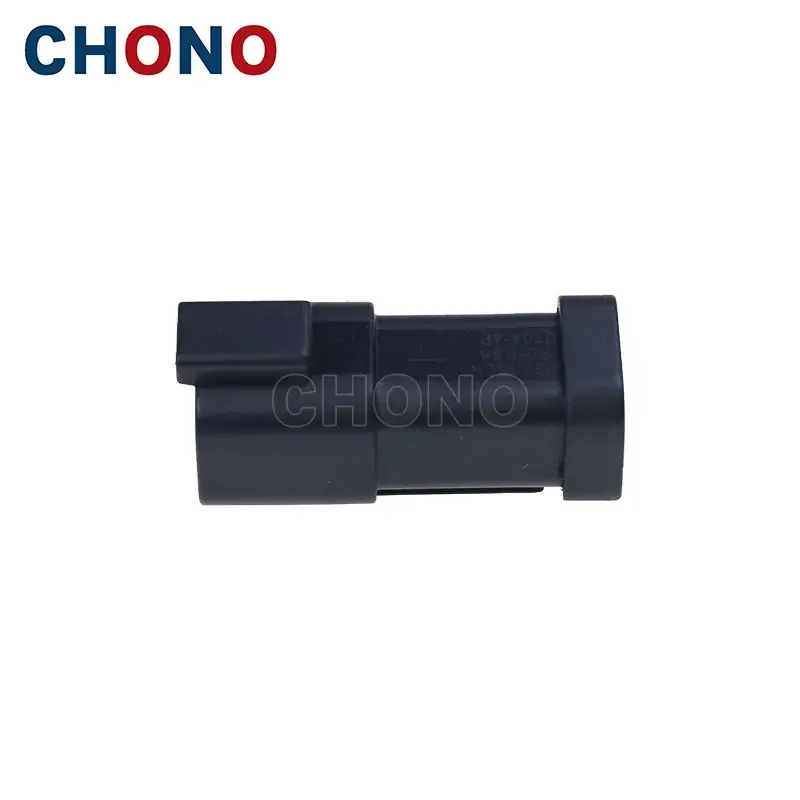

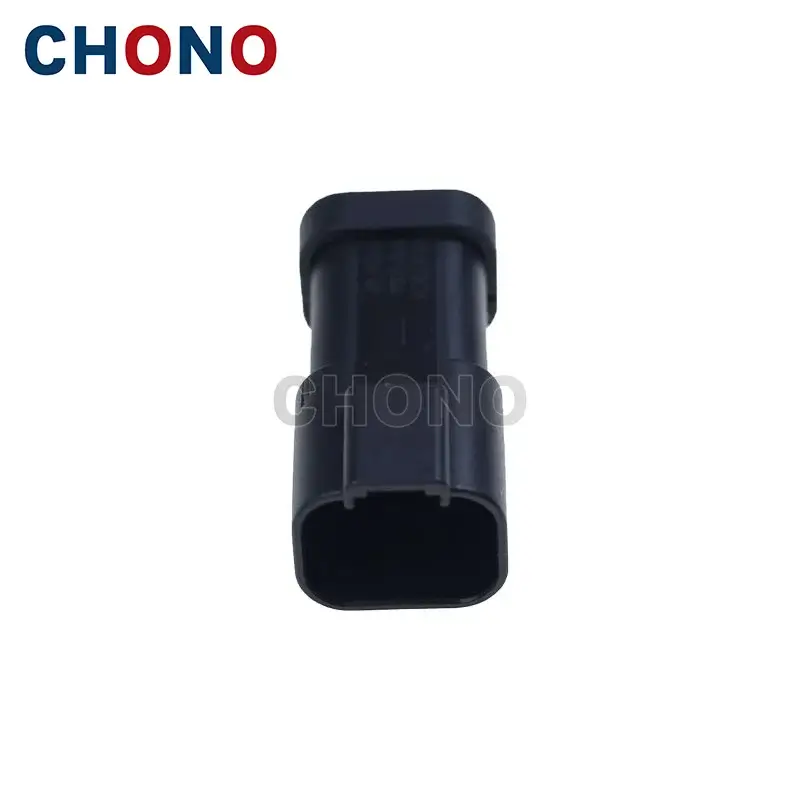

DT04-4P-E005 4 Way Male DT Deutsch Plug

DT04-4P-E005

SKU DT04-4P-E005 Categories 4 Way, Deutsch Connector, DT

Information
Drawing

Information

SKU	DT04-4P-E005
Required Wedgelock:	W4P Included
Required Seals:	Silicone Rubber, Included
Series:	DT Series
Material:	Thermoplastic
Color:	Black
Shape:	Rectangular
Cavities:	2,3,4,6,8,12
Wire Gauge:	12-20 AWG
Contact Size:	16
Current Rating:	13A

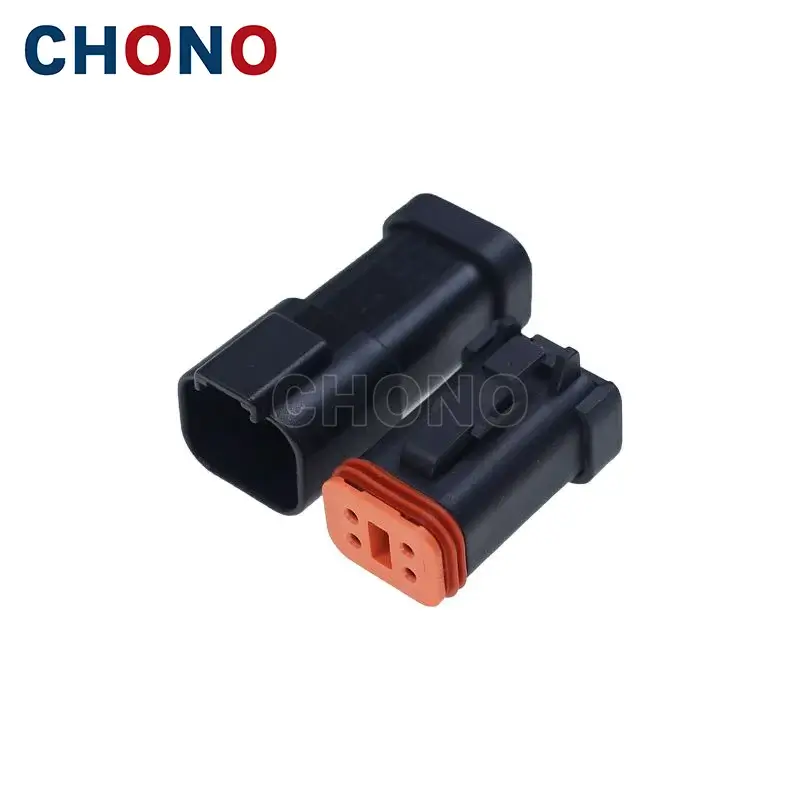

Matching Connector	DT06-4S-E005

DT04-4P-E005 4 Way Male DT Deutsch Plug

Drawing

You may also like…

DT06-4S-E005 4 Pin Deutsch DT Connector

DT,DTM,and DTP series environmentally sealed connectors aredesigned for cable to cable and cable to board applications.The DT connectors are used in harsh environment applications whereeven a small degradation in connection may be critical.Thermoplastic housings offer a wide operating temperaturerange and silicone rear wire and interface seals allow theconnectors to withstand conditions of extreme temperature andmoisture.

DT Kits

DT-140A

DT06-2S:	4	DT04-2P:	4
DT06-3S:	3	DT04-3P:	3
DT06-4S:	5	DT04-4P:	5
DT06-6S:	3	DT04-6P:	3
1062-16-0122: (Female terminal)	55	1060-16-0122: (Male terminal)	55

DT-234B

DT06-2S:	5	DT04-2P:	5
DT06-3S:	5	DT04-3P:	5
DT06-4S:	5	DT04-4P:	5
DT06-6S:	5	DT04-6P:	5
DT06-8S:	1	DT04-8P:	1
DT06-12S:	1	DT04-12P:	1
1062-16-0122: (Female terminal)	85	1060-16-0122: (Male terminal)	85
114017(Plug Cavity):	20

DT-430C

DT06-2S:	7	DT04-2P:	7
DT06-3S:	5	DT04-3P:	5
DT06-4S:	5	DT04-4P:	5
DT06-6S:	5	DT04-6P:	5
DT06-8S:	4	DT04-8P:	4
DT06-12S:	4	DT04-12P:	4
1062-16-0122: (Female terminal)	160	1060-16-0122: (Male terminal)	160
114017(Plug Cavity):	50
